PORTABLE VERSIONS
1. Heavy stable motor
2. Large diameter blade to cut more veneer
3. No adjustments necessary
4. Requires a minimum 3 ft long cut off table for the table saw models
How TO ORDER:
Each trimmer has the guide bar fitted to match the table saw/sliding table saw for which it is intended to be used.
Each saw, even those of the same models, is a little different. To measure for the proper fit, first insert the 60-tooth
triple chip carbide saw blade that will be used as the veneer blade on the table saw.
For the table saw, measure the distance between the right face of the saw blade (measure from the teeth not the plate)
and the left edge of the right miter gauge slot in the table of the table saw. This dimension and the make and model of the
table saw are all that is needed to make an order.
For the sliding table saw, measure the distance from the left face of the triple chip blade to the right edge of the
slot in the sliding table. This dimension along with the model and make of the saw are all that are needed to make an order.
Make your order using the contact information at the bottom of the page. Allow 2 weeks for the basic Trimmer to be
fitted out for the version ordered and the specific guide bar location.
The diagram below shows the dimensions that are required. They are shown in red.
|
Sliding table guide layout dimensions |
|
Portable Circular Saw Version |
PORTABLE CIRCULAR SAW VERSION
1. It can have a permanent location outfitted for veneer operations
2. The
table saw is free for other operations
3. It is suitable for shops without in-feed and out-feed
tables on the table saw
4. Easy and safe one person operation
5. The maximum depth of cut is limited to 1/2" of veneer
at one time (for 1/32" veneer that is 16 leaves).
HOW TO ORDER
For the portable circular saw version simply let us know which heavy duty circular you plan to use. The recommended
blade will be shipped with the Trimmer. Currently there are models from the following manufacturers that will fit the Trimmer
: Porter Cable, Milwaukee, Bosh, DeWalt, Makita, and Rigid . The edge of the shoe to the blade dimension should be 5" +-
1/8" . If you have one of the older saws with a blade to guide dimension wider than 5 1/4" or less than 4 7/8" we will have
to do a custom saw guide. The cost would be approximately $40.00. Some of these older models, like our 20 year old Porter
Cable are much more rigid than the newer saws and are worth the extra effort.
Make your order using the comtact information at the bottom of the page. Allow 2 weeks for the basic Trimmer to be fitted
out for the version ordered and the specific guide bar location.
WE ACCEPT VISA, MASTERCARD, AND CHECKS
WHAT IS INCLUDED

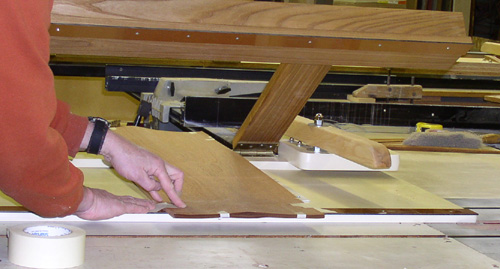

The Table Saw Version includes the Customized
Veneer Trimmer, a cross cut guide, one extra set
of replacable clamp pads, and the instuction manual.
The Portable Circular Saw Version includes the
Customized Veneer Trimmer, a cross cut guide, one
extra set of replacable clamp pads, the recomended
7 1/4" circular saw blade, and the instruction
manual.
SHIPPING
The 96" Sliding Table Table Saw models are 175 lbs. including the skid and packaging . The 96" stationary
- hand circular saw model weighs 195 lbs including skid and packaging. Both are shipped common carrier. The 48" models
are 80 lbs on a skid 50" x 26" x 6" and can be shipped UPS standard.
|
